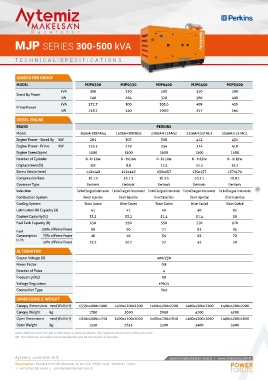

G e n e r a t o r

MJP SERIES 300-500 kVA

TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP
MODEL MJP0300 MJP0330 MJP0400 MJP0450 MJP0500
kVA 300 330 400 450 500
Stand By Power
kW 240 264 320 360 400
kVA 272.7 300 363.6 409 455
Prime Power
kW 218.2 240 290.9 327 364
DIESEL ENGINE
BRAND PERKINS
Model 1506A-E88TAG4 1506A-E88TAG5 2206A-E13TAG2 2206A-E13TAG3 2506A-E15TAG1
Engine Power - Stand By kW 281 307 368 412 451
Engine Power - Prime kW 255.5 279 334 374 410
Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 8.8 8.8 12.5 12.5 15.2
Bore x Stroke (mm) 112x149 112x149 130x157 130x157 137x171
Compression Rate 16.1:1 16.1:1 16.3:1 16.3:1 16.0:1
Governor Type Electronic Electronic Electronic Electronic Electronic
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler 23
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 41 41 40 40 62
Coolant Capacity (lt) 33.2 33.2 51.4 51.4 58
Fuel Tank Capacity (lt) 450 550 550 550 970
Fuel 100% of Prime Power 60 60 71 81 95
Consumption 75% of Prime Power 46 46 54 62 72
lt / h
50% of Prime Power 32.2 32.2 37 42 50
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1350x4000x1900 1400x4200x2200 1400x4200x2200 1400x4200x2200 1400x4200x2200
Canopy Weight kg 1780 2690 3900 4100 4200
Open Dimensions mm (WxDxH) 1350x4000x1750 1400x4200x2050 1400x4200x2050 1400x4200x2050 1400x4200x2050
Open Weight kg 1530 2655 3200 3400 3500

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
