G e n e r a t o r

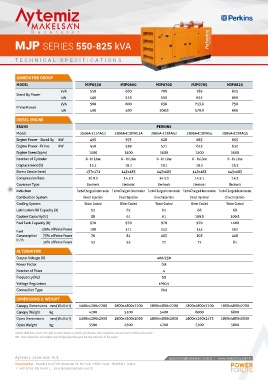

MJP SERIES 550-825 kVA

TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP
MODEL MJP0550 MJP0660 MJP0700 MJP0785 MJP0825
kVA 550 660 700 785 825
Stand By Power
kW 440 528 560 625 660
kVA 500 600 636 713.6 750
Prime Power
kW 400 480 508.8 570.9 600
DIESEL ENGINE
BRAND PERKINS
Model 2506A-E15TAG2 2806A-E18TAG1A 2806A-E18TAG2 2806A-E18TAG4 2806A-E18TAG5
Engine Power - Stand By kW 495 593 628 685 695
Engine Power - Prime kW 450 539 571 623 632
Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 15.2 18.1 18.1 18.1 18.1
Bore x Stroke (mm) 137x171 145x183 145x183 145x183 145x183
Compression Rate 16.0:1 14.5:1 14.5:1 14.5:1 14:1
Governor Type Electronic Electronic Electronic Electronic Electronic
24
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 62 62 62 68 68
Coolant Capacity (lt) 58 61 61 109.5 109.5
Fuel Tank Capacity (lt) 970 970 970 970 1100
Fuel 100% of Prime Power 100 111 143 143 162
Consumption 75% of Prime Power 76 81 105 105 118
lt / h
50% of Prime Power 53 55 72 72 81
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1400x4200x2200 1800x4800x2200 1800x4800x2200 1800x4800x2200 1800x4800x2200
Canopy Weight kg 4200 5200 5400 6000 6800
Open Dimensions mm (WxDxH) 1400x4200x2050 1800x4500x2050 1800x4800x2050 1800x4290x2475 1800x4800x2050
Open Weight kg 3500 4500 4700 5300 5800

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
