P. 29
G e n e r a t o r G e n e r a t o r

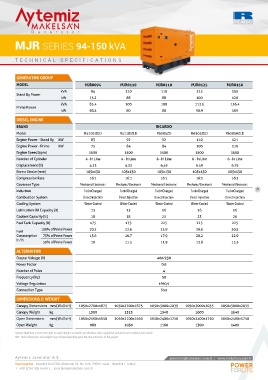

MJR SERIES 35-82 kVA MJR SERIES 94-150 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJR0035 MJR0050 MJR0055 MJR0070 MJR0082 MODEL MJR0094 MJR0110 MJR0110 MJR0125 MJR0150
kVA 35 50 55 70 82 kVA 94 110 110 125 150
Stand By Power Stand By Power
kW 28 40 44 56 65.6 kW 75.2 88 88 100 120
kVA 32 45.5 50 63.6 75 kVA 85.4 100 100 113.6 136.4
Prime Power Prime Power
kW 25.6 36.3 40 50.9 60 kW 68.3 80 80 90.9 109
DIESEL ENGINE DIESEL ENGINE
BRAND RICARDO BRAND RICARDO
Model K4100D K4100ZD K4102ZD D4105ZD R4105IZD/D4105IZLD Model R4105IZLD R4110IZLD R6105ZD R6105ZLD R6105AZLD
Engine Power - Stand By kW 33 44 48 62 73 Engine Power - Stand By kW 83 92 92 110 121
Engine Power - Prime kW 30.1 40 44 56 66 Engine Power - Prime kW 75 84 84 100 110
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line Number of Cylinder 4 - In Line 4 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 3.61 3.61 3.61 3.61 4.33 Displacement (lt) 4.33 4.33 6.49 6.49 6.75
Bore x Stroke (mm) 100x115 100x115 102x115 105x115 105x125/105x115 Bore x Stroke (mm) 105x130 105x130 105x130 105x130 105x130
Compression Rate 17:1 17:1 17:1 17:1 16:1/17:1 Compression Rate 16:1 16:1 16:1 16:1 16:1
Governor Type Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Governor Type Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic
Induction Natural TurboCharged TurboCharged TurboCharged TurboCharged-Intercooler Induction TurboCharged TurboCharged TurboCharged TurboCharged TurboCharged 29
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 13 13 13 13 13 Lubrication Oil Capacity (lt) 13 13 16 16 16
Coolant Capacity (lt) 13 13 13 13 16/13 Coolant Capacity (lt) 18 18 23 23 25
Fuel Tank Capacity (lt) 138 138 138 175 175 Fuel Tank Capacity (lt) 175 175 225 225 225
Fuel 100% of Prime Power 9 12.1 13 16.6 18 Fuel 100% of Prime Power 20.2 22.6 23.9 26.6 30.5
Consumption 75% of Prime Power 4.9 8.9 9.8 12.3 13.5 Consumption 75% of Prime Power 15.6 16.7 17.9 20.2 22.9
lt / h lt / h
50% of Prime Power 3.8 6 6.2 8.2 9 50% of Prime Power 10 11.5 11.9 13.8 15.3
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1000x2300x1715 1000x2300x1715 1000x2300x1715 1050x2700x1875 1050x2700x1875 Canopy Dimensions mm (WxDxH) 1050x2700x1875 1050x2700x1875 1050x3000x2035 1050x3000x2035 1050x3000x2035
Canopy Weight kg 875 1010 1050 1100 1170 Canopy Weight kg 1300 1325 1540 1600 1640
Open Dimensions mm (WxDxH) 1000x1750x1450 1000x1750x1450 1000x1750x1450 1050x2100x1650 1050x2100x1650 Open Dimensions mm (WxDxH) 1050x2100x1650 1050x2100x1650 1050x2400x1750 1050x2400x1750 1050x2400x1750
Open Weight kg 700 780 820 860 890 Open Weight kg 980 1050 1160 1300 1400
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
