G e n e r a t o r

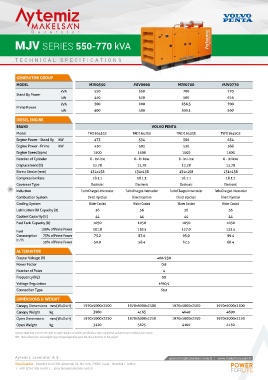

MJV SERIES 550-770 kVA

TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP
MODEL MJV0550 MJV0660 MJV0700 MJV0770
kVA 550 660 700 770
Stand By Power
kW 440 528 560 616
kVA 500 600 636.3 700
Prime Power
kW 400 480 509.1 560
DIESEL ENGINE
BRAND VOLVO PENTA
Model TAD1641GE TAD1642GE TWD1643GE TWD1645GE
Engine Power - Stand By kW 473 554 596 654
Engine Power - Prime kW 430 503 536 588
Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 12.78 12.78 12.78 12.78
Bore x Stroke (mm) 131x158 131x158 131x158 131x158
Compression Rate 18.1:1 18.1:1 18.1:1 18.1:1
Governor Type Electronic Electronic Electronic Electronic
34
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 36 36 36 36
Coolant Capacity (lt) 44 44 44 44
Fuel Tank Capacity (lt) 1050 1050 1050 1050
Fuel 100% of Prime Power 101.8 118.5 127.0 133.5
Consumption 75% of Prime Power 75.2 87.6 93.9 99.4
lt / h
50% of Prime Power 50.9 58.4 62.5 68.4
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1970x5000x2500 1970x5000x2500 1970x5000x2500 1970x5000x2500
Canopy Weight kg 3960 4165 4640 4690
Open Dimensions mm (WxDxH) 1970x5000x2250 1970x5000x2250 1970x5000x2250 1970x5000x2250
Open Weight kg 3420 3625 4100 4150

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
