P. 37
G e n e r a t o r G e n e r a t o r

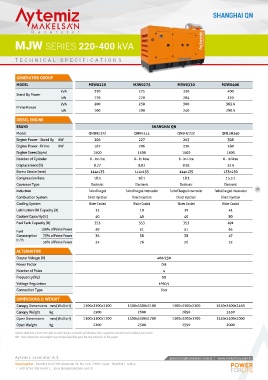

MJY SERIES 55-105 kVA MJW SERIES 220-400 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJY0055 MJY0070 MJY0077 MJY0105 MODEL MJW0220 MJW0275 MJW0330 MJW0400
kVA 55 70 77 105 kVA 220 275 330 400
Stand By Power Stand By Power
kW 44 56 61.6 84 kW 176 220 264 320
kVA 50 63.6 70 95.5 kVA 200 250 300 363.6
Prime Power Prime Power
kW 40 50.9 56 76.4 kW 160 200 240 290.9
DIESEL ENGINE DIESEL ENGINE
BRAND YANG DONG BRAND SHANGHAI QN
Model Y4102ZLD Y4105ZLD YD4EZLD Y4110ZLD Model QN8H217Z QN9H245 QN9H272Z QN13H340
Engine Power - Stand By kW 52.8 66 72.6 99 Engine Power - Stand By kW 206 227 263 308
Engine Power - Prime kW 48 60 66 90 Engine Power - Prime kW 187 206 230 280
Engine Speed (rpm) 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 3.87 4.1 4.1 4.4 Displacement (lt) 8.27 8.82 8.82 12.9
Bore x Stroke (mm) 102x118 105x118 105x118 110x118 Bore x Stroke (mm) 114x135 114x135 114x135 135x150
Compression Rate 18:1 18:1 18:1 18:1 Compression Rate 18:1 18:1 18:1 15.5:1
Governor Type Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Electronic Governor Type Electronic Electronic Electronic Electronic
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler Induction TurboCharged TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler 37
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 13 13 13 14 Lubrication Oil Capacity (lt) 12 19 19 41
Coolant Capacity (lt) 15.1 15.1 15.8 18 Coolant Capacity (lt) 40 40 40 80
Fuel Tank Capacity (lt) 125 160 160 160 Fuel Tank Capacity (lt) 353 353 353 491
Fuel 100% of Prime Power 12.7 15.5 16.9 23.2 Fuel 100% of Prime Power 49 51 51 65
Consumption 75% of Prime Power 9.6 11.8 12.7 17.7 Consumption 75% of Prime Power 36 38 38 47
lt / h lt / h
50% of Prime Power 6.4 7.9 8.6 11.8 50% of Prime Power 24 26 26 32
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1000x2300x1715 1050x2700x1875 1050x2700x1875 1050x2700x1875 Canopy Dimensions mm (WxDxH) 1300x3300x2100 1300x3300x2100 1300x3300x2100 1550x3500x2450
Canopy Weight kg 1150 1240 1280 1375 Canopy Weight kg 2500 2600 2850 3350
Open Dimensions mm (WxDxH) 1000x1750x1450 1050x2090x1650 1050x2090x1650 1050x2090x1650 Open Dimensions mm (WxDxH) 1300x3300x1700 1300x3300x1700 1300x3300x1700 1550x3500x2000
Open Weight kg 945 1040 1060 1135 Open Weight kg 2200 2300 2550 2000
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
