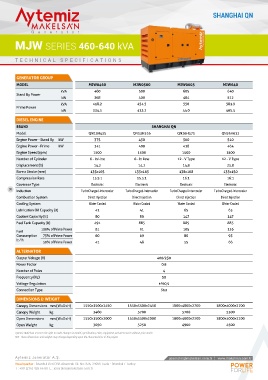

G e n e r a t o r
MJW SERIES 460-640 kVA
TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP
MODEL MJW0460 MJW0500 MJW0605 MJW640
kVA 460 500 605 640
Stand By Power
kW 368 400 484 512
kVA 418.2 454.5 550 581.9
Prime Power
kW 334.5 413.2 44 0 465.5
DIESEL ENGINE
BRAND SHANGHAI QN
Model QN13H435 QN13H516 QN26H571 QN26H612
Engine Power - Stand By kW 375 450 560 510
Engine Power - Prime kW 341 409 418 464
Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 12 - V Type 12 - V Type
Displacement (lt) 14.2 14.2 14.8 25.8
Bore x Stroke (mm) 135x165 135x165 138x168 135x150
Compression Rate 15.5:1 15.5:1 16:1 16:1
Governor Type Electronic Electronic Electronic Electronic
38
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 41 41 65 65
Coolant Capacity (lt) 80 80 147 147
Fuel Tank Capacity (lt) 491 885 885 885
Fuel 100% of Prime Power 81 91 105 126
Consumption 75% of Prime Power 60 69 80 95
lt / h
50% of Prime Power 41 48 55 66
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1550x3500x2450 1550x3500x2450 1800x4800x2700 1800x4000x2700
Canopy Weight kg 3460 3700 5700 5300
Open Dimensions mm (WxDxH) 1550x3500x2000 1550x3500x2000 1800x4000x2200 1800x4000x2200
Open Weight kg 3050 3250 4900 4500
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
