P. 35
G e n e r a t o r G e n e r a t o r

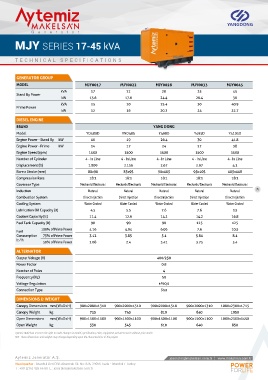

MJV SERIES 550-770 kVA MJY SERIES 17-45 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJV0550 MJV0660 MJV0700 MJV0770 MODEL MJY0017 MJY0022 MJY0028 MJY0033 MJY0045
kVA 550 660 700 770 kVA 17 22 28 33 45
Stand By Power Stand By Power
kW 440 528 560 616 kW 13.6 17.6 24.4 26.4 36
kVA 500 600 636.3 700 kVA 15 20 25.4 30 40.9
Prime Power Prime Power
kW 400 480 509.1 560 kW 12 16 20.3 24 32.7
DIESEL ENGINE DIESEL ENGINE
BRAND VOLVO PENTA BRAND YANG DONG
Model TAD1641GE TAD1642GE TWD1643GE TWD1645GE Model YD480D YND485 Y490D Y495D Y4105D
Engine Power - Stand By kW 473 554 596 654 Engine Power - Stand By kW 16 19 26.4 30 41.8
Engine Power - Prime kW 430 503 536 588 Engine Power - Prime kW 14 17 24 27 38
Engine Speed (rpm) 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line
Displacement (lt) 12.78 12.78 12.78 12.78 Displacement (lt) 1.809 2.156 2.67 2.97 4.1
Bore x Stroke (mm) 131x158 131x158 131x158 131x158 Bore x Stroke (mm) 80x90 85x95 90x105 95x105 105x118
Compression Rate 18.1:1 18.1:1 18.1:1 18.1:1 Compression Rate 18:1 18:1 18:1 18:1 18:1
Governor Type Electronic Electronic Electronic Electronic Governor Type Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler Induction Natural Natural Natural Natural Natural 35
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 36 36 36 36 Lubrication Oil Capacity (lt) 4.5 5.5 7.6 7.6 13
Coolant Capacity (lt) 44 44 44 44 Coolant Capacity (lt) 11.4 12.6 14.2 14.2 16.8
Fuel Tank Capacity (lt) 1050 1050 1050 1050 Fuel Tank Capacity (lt) 90 90 90 125 125
Fuel 100% of Prime Power 101.8 118.5 127.0 133.5 Fuel 100% of Prime Power 4.16 4.94 6.06 7.6 10.5
Consumption 75% of Prime Power 75.2 87.6 93.9 99.4 Consumption 75% of Prime Power 3.12 3.85 5.1 5.81 8.1
lt / h lt / h
50% of Prime Power 50.9 58.4 62.5 68.4 50% of Prime Power 2.08 2.4 3.41 3.75 5.4
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1970x5000x2500 1970x5000x2500 1970x5000x2500 1970x5000x2500 Canopy Dimensions mm (WxDxH) 900x2000x1310 900x2000x1310 900x2000x1310 900x2000x1310 1000x2300x1715
Canopy Weight kg 3960 4165 4640 4690 Canopy Weight kg 715 740 810 840 1050
Open Dimensions mm (WxDxH) 1970x5000x2250 1970x5000x2250 1970x5000x2250 1970x5000x2250 Open Dimensions mm (WxDxH) 900x1500x1100 900x1500x1100 900x1500x1100 900x1500x1100 1000x2300x1450
Open Weight kg 3420 3625 4100 4150 Open Weight kg 530 545 610 640 850
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
