G e n e r a t o r G e n e r a t o r

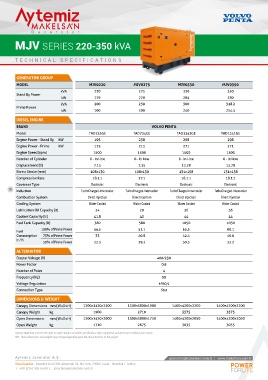

MJV SERIES 220-350 kVA MJV SERIES 385-500 kVA

TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP GENERATOR GROUP
MODEL MJV0220 MJV0275 MJV0330 MJV0350 MODEL MJV0385 MJV0415 MJV0450 MJV0500
kVA 220 275 330 350 kVA 385 415 450 500
Stand By Power Stand By Power
kW 176 220 264 280 kW 308 332 360 400
kVA 200 250 300 318.2 kVA 350 370 400 450
Prime Power Prime Power
kW 160 200 240 254.5 kW 280 296 320 320
DIESEL ENGINE DIESEL ENGINE
BRAND VOLVO PENTA BRAND VOLVO PENTA
Model TAD733GE TAD734GE TAD1341GE TAD1341GE Model TAD1342GE TAD1343GE TAD1344GE TAD1341GE
Engine Power - Stand By kW 195 238 298 298 Engine Power - Stand By kW 298 356 389 431
Engine Power - Prime kW 175 213 271 271 Engine Power - Prime kW 271 325 354 388
Engine Speed (rpm) 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 7.15 7.15 12.78 12.78 Displacement (lt) 12.78 12.78 12.78 12.78
Bore x Stroke (mm) 108x130 108x130 131x158 131x158 Bore x Stroke (mm) 131x158 131x158 131x158 131x158
Compression Rate 18.1:1 17:1 18.1:1 18.1:1 Compression Rate 18.1:1 18.1:1 18.1:1 18.1:1
Governor Type Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic Electronic
32
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 34 29 36 36 Lubrication Oil Capacity (lt) 36 36 36 36
Coolant Capacity (lt) 41.8 42 44 44 Coolant Capacity (lt) 44 44 44 44
Fuel Tank Capacity (lt) 380 580 1050 1050 Fuel Tank Capacity (lt) 1050 1050 1050 1050
Fuel 100% of Prime Power 44.5 51.1 55.5 60.1 Fuel 100% of Prime Power 68.1 73.4 80.8 89.5
Consumption 75% of Prime Power 33 40.8 42.4 46.6 Consumption 75% of Prime Power 51.6 55.3 61.5 67.4
lt / h lt / h
50% of Prime Power 22.3 29.2 30.5 32.2 50% of Prime Power 35.8 38.2 41.6 45.4
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1200x3420x2100 1300x3800x1900 1400x4200x2200 1400x4200x2200 Canopy Dimensions mm (WxDxH) 1400x4200x2200 1400x4200x2200 1400x4200x2200 1970x5000x2500
Canopy Weight kg 1960 2710 3575 3575 Canopy Weight kg 1960 2710 3575 3575
Open Dimensions mm (WxDxH) 1200x3420x2000 1300x3800x1750 1400x4200x2050 1400x4200x2050 Open Dimensions mm (WxDxH) 1400x4200x2050 1400x4200x2050 1400x4200x2050 1970x5000x2250
Open Weight kg 1710 2675 3035 3035 Open Weight kg 3035 3080 3715 3260

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
