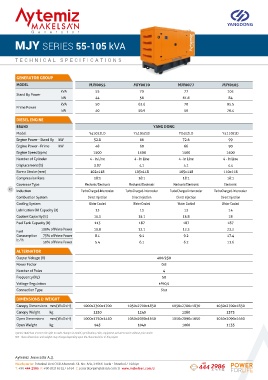

P. 42
G e n e r a t o r
MJY SERIES 55-105 kVA
TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP
MODEL MJY0055 MJY0070 MJY0077 MJY0105
kVA 55 70 77 105
Stand By Power
kW 44 56 61.6 84
kVA 50 63.6 70 95.5
Prime Power
kW 40 50.9 56 76.4
DIESEL ENGINE
BRAND YANG DONG
Model Y4102ZLD Y4105ZLD YD4EZLD Y4110ZLD
Engine Power - Stand By kW 52.8 66 72.6 99
Engine Power - Prime kW 48 60 66 90
Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line
Displacement (lt) 3.87 4.1 4.1 4.4
Bore x Stroke (mm) 102x118 105x118 105x118 110x118
Compression Rate 18:1 18:1 18:1 18:1
Governor Type Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Electronic
42
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 13 13 13 14
Coolant Capacity (lt) 15.1 15.1 15.8 18
Fuel Tank Capacity (lt) 113 187 187 187
Fuel 100% of Prime Power 10.8 12.1 12.3 23.2
Consumption 75% of Prime Power 8.1 9.1 9.2 17.4
lt / h
50% of Prime Power 5.4 6.1 6.2 11.6
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1000x2300x1700 1050x2700x1830 1050x2700x1830 1050x2700x1830
Canopy Weight kg 1150 1240 1280 1375
Open Dimensions mm (WxDxH) 1000x1750x1450 1050x2090x1650 1050x2090x1650 1050x2090x1650
Open Weight kg 945 1040 1060 1135
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
