P. 47
G e n e r a t o r G e n e r a t o r

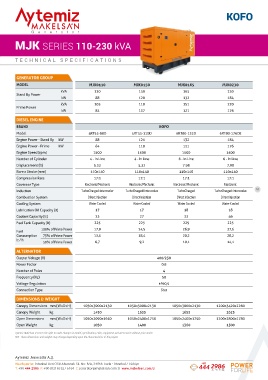

MJK SERIES 35-82 kVA MJK SERIES 110-230 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJK0035 MJK0050 MJK0055 MJK0070 MJK0082 MODEL MJK0110 MJK0150 MJK0165 MJK0230
kVA 35 50 55 70 82 kVA 110 150 165 230
Stand By Power Stand By Power
kW 28 40 44 56 65 kW 88 120 132 184
kVA 30 47 52 72 82 kVA 105 110 151 220
Prime Power Prime Power
kW 24 38 42 58 66 kW 84 137 121 176
DIESEL ENGINE DIESEL ENGINE
BRAND KOFO BRAND KOFO
Model MN4100DS-30 MN4105DS-38 MN4100ZDS MN4105ZDS MN4105ZLDS Model 4RT55-88D 4RT55-110D 6RT80-132D 6RT80-176DE
Engine Power - Stand By kW 33 42 44 58 68 Engine Power - Stand By kW 88 121 132 184
Engine Power - Prime kW 30 38 42 56 66 Engine Power - Prime kW 84 110 121 176
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line Number of Cylinder 4 - In Line 4 - In Line 6 - In Line 6 - In Line
Displacement (lt) 3.61 4.15 3.61 4.15 4.15 Displacement (lt) 5.32 5.32 7.98 7.98
Bore x Stroke (mm) 100x115 105x120 100x115 105x120 105x120 Bore x Stroke (mm) 110x140 110x140 110x140 110x140
Compression Rate 17:1 17:1 17:1 17:1 17:1 Compression Rate 17:1 17:1 17:1 17:1
Governor Type Electronic/Mechanic Electronic/Mechanic Electronic/Mechanic Electronic/Mechanic Electronic/Mechanic Governor Type Electronic/Mechanic Electronic/Mechanic Electronic/Mechanic Electronic
Induction Natural Natural TurboCharged TurboCharged TurboCharged-Intercooler Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged TurboCharged-Intercooler 47
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 13 13 13 13 13 Lubrication Oil Capacity (lt) 17 17 18 18
Coolant Capacity (lt) 16,0 17 16,0 18 18 Coolant Capacity (lt) 23 27 33 46
Fuel Tank Capacity (lt) 235 230 230 225 225 Fuel Tank Capacity (lt) 225 225 225 225
Fuel 100% of Prime Power 5,7 9,2 8,3 11,9 13,4 Fuel 100% of Prime Power 17,9 24,5 26,9 37,6
Consumption 75% of Prime Power 4,3 6,9 6,3 8,6 10,1 Consumption 75% of Prime Power 13,5 18,4 20,2 28,2
lt / h lt / h
50% of Prime Power 2,2 3,5 3,1 4,3 5 50% of Prime Power 6,7 9,2 10,1 14,1
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1000x2300x1700 1000x2300x1700 1000x2300x1700 1050x2700x1830 1050x2700x1830 Canopy Dimensions mm (WxDxH) 1050x3000x2130 1050x3000x2130 1050x3000x2130 1200x3420x2260
Canopy Weight kg 900 1030 1010 1130 1160 Canopy Weight kg 1450 1655 1655 2625
Open Dimensions mm (WxDxH) 1000x1750x1450 1000x1750x1450 1000x1750x1450 1050x2090x1650 1050x2090x1650 Open Dimensions mm (WxDxH) 1050x2090x1650 1050x2400x1750 1050x2400x1750 1200x2800x1780
Open Weight kg 700 780 820 860 890 Open Weight kg 1050 1400 1360 1500
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
