G e n e r a t o r G e n e r a t o r

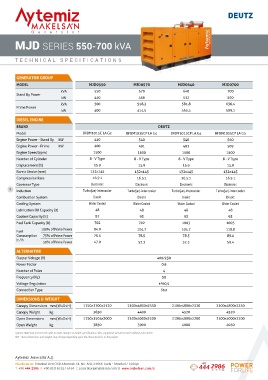

MJD SERIES 550-700 kVA MJB SERIES 20-50 kVA

TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP GENERATOR GROUP
MODEL MJD0550 MJD0570 MJD0640 MJD0700 MODEL MJB0020 MJB0025 MJB0035 MJB0044 MJB0050
kVA 550 570 640 700 kVA 20 25 35 44 50
Stand By Power Stand By Power
kW 440 456 512 560 kW 16 18 28 35.2 40
kVA 500 518.2 581.8 636.4 kVA 18.2 20 31.8 40 45.4
Prime Power Prime Power
kW 400 414.5 465.4 509.1 kW 14.5 16 25.5 32 36
DIESEL ENGINE DIESEL ENGINE
BRAND DEUTZ BRAND BAUDOUIN
Model BF8M1015C LA G2 BF8M1015CP LA G4 BF8M1015CP LA G4 BF8M1015CP LA G5 Model 4M06G20/5 4M06G25/5 4M06G33/5 4M06G44/5 4M06G50/5
Engine Power - Stand By kW 440 540 540 560 Engine Power - Stand By kW 20 25 33 41 48
Engine Power - Prime kW 400 491 491 509 Engine Power - Prime kW 18 23 30 37 44
Engine Speed (rpm) 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 8 - V Type 8 - V Type 8 - V Type 8 - V Type Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line
Displacement (lt) 15.9 15.9 15.9 15.9 Displacement (lt) 2.3 2.3 2.3 2.3 2.3
Bore x Stroke (mm) 132x145 132x145 132x145 132x145 Bore x Stroke (mm) 89x92 89x92 89x92 89x92 89x92
Compression Rate 16.5:1 16.5:1 16.5:1 16.5:1 Compression Rate 17.5:1 17.5:1 17.5:1 17.5:1 17.5:1
Governor Type Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic Electronic ECU
8
Induction TurboŞarj-Intercooler TurboŞarj-Intercooler TurboŞarj-Intercooler TurboŞarj-Intercooler Induction Natural Natural TurboCharged TurboCharged TurboCharged-Aftercooler
Combustion System Direkt Direkt Direkt Direkt Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 48 48 48 48 Lubrication Oil Capacity (lt) 9.5 9.5 9.5 9.5 9.5
Coolant Capacity (lt) 87 93 93 93 Coolant Capacity (lt) 16 16 16 16 12.9
Fuel Tank Capacity (lt) 702 702 1003 1003 Fuel Tank Capacity (lt) 79 79 113 113 113
Fuel 100% of Prime Power 94.0 104.7 104.7 118.8 Fuel 100% of Prime Power 4.8 6.1 7.6 9.3 10.4
Consumption 75% of Prime Power 70.5 78.5 78.5 89.1 Consumption 75% of Prime Power 3.7 4.5 5.4 6.8 7.5
lt / h lt / h
50% of Prime Power 47.0 52.3 52.3 59.4 50% of Prime Power 2.6 3.2 4.1 4.6 5.2
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1750x3700x2120 2100x4800x2330 2100x4800x2330 2100x4800x2330 Canopy Dimensions mm (WxDxH) 900x2000x1410 900x2000x1410 1000x2300x1700 1000x2300x1700 1000x2300x1700
Canopy Weight kg 3650 4400 4520 4520 Canopy Weight kg 750 850 900 900 900
Open Dimensions mm (WxDxH) 1750x3504x2000 2100x4000x2200 2100x4000x2200 2100x4000x2200 Open Dimensions mm (WxDxH) 900x1500x1100 900x1500x1100 1000x1750x1450 1000x1750x1450 1000x1750x1450
Open Weight kg 3850 3900 4000 4050 Open Weight kg 600 700 710 730 750

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
