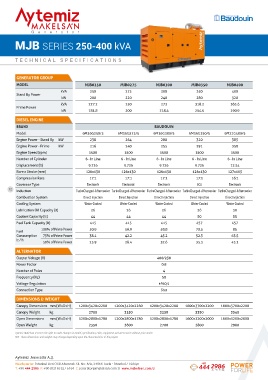

Page 12 - Aytemiz Makelsan Generator | Catalogue

G e n e r a t o r G e n e r a t o r

MJB SERIES 250-400 kVA MJB SERIES 440-715 kVA

TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP GENERATOR GROUP
MODEL MJB0250 MJB0275 MJB0300 MJB0350 MJB0400 MODEL MJB0440 MJB0500 MJB0550 MJB0660 MJB0715
kVA 250 275 300 350 400 kVA 440 500 550 660 715
Stand By Power Stand By Power
kW 200 220 240 280 320 kW 352 400 440 528 572
kVA 227.2 250 273 318.2 363.6 kVA 400 454.5 500 600 650
Prime Power Prime Power
kW 181.8 200 218.4 254.5 290.9 kW 320 363.6 400 480 520
DIESEL ENGINE DIESEL ENGINE
BRAND BAUDOUIN BRAND BAUDOUIN
Model 6M16G250/5 6M16G275/5 6M16G300/5 6M16G350/5 6M21G400/5 Model 6M21G440/5 6M21G500/5 6M26G550/5 6M33G660/5 6M33G715/5
Engine Power - Stand By kW 238 264 280 320 385 Engine Power - Stand By kW 405 450 490 587 633
Engine Power - Prime kW 216 240 255 291 350 Engine Power - Prime kW 368 409 448 536 575
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 9.726 9.726 9.726 9.726 12.54 Displacement (lt) 12.54 12.54 15.90 19.60 19.60
Bore x Stroke (mm) 126x130 126x130 126x130 126x130 127x165 Bore x Stroke (mm) 127x165 127x165 150x150 150x185 150x185
Compression Rate 17:1 17:1 17:1 17:1 16:1 Compression Rate 16:1 16:1 15.9:1 15:1 15:1
Governor Type Electronic Electronic Electronic ECU Electronic Governor Type Electronic ECU Electronic Electronic Electronic
12
Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 26 26 26 26 30 Lubrication Oil Capacity (lt) 30 30 52 52 61
Coolant Capacity (lt) 44 44 44 50 55 Coolant Capacity (lt) 55 55 108.7 108.7 129
Fuel Tank Capacity (lt) 415 415 415 457 457 Fuel Tank Capacity (lt) 457 457 548 548 1003
Fuel 100% of Prime Power 50.9 56.9 58.8 70.5 85 Fuel 100% of Prime Power 85 112.9 104.9 122.8 135.1
Consumption 75% of Prime Power 38.1 42.2 45.2 52.3 63.5 Consumption 75% of Prime Power 63.5 77.8 78.4 92.8 99.3
lt / h lt / h
50% of Prime Power 25.9 28.4 32.6 35.3 43.1 50% of Prime Power 43.1 52 53.6 64.4 66.4
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1200x3420x2260 1200x3420x2260 1200x3420x2260 1600x3700x2200 1600x3700x2200 Canopy Dimensions mm (WxDxH) 1600x3700x2200 1600x3700x2200 1750x3700x2120 2100x4800x2330 2100x4800x2330
Canopy Weight kg 2700 3150 3250 3350 3540 Canopy Weight kg 4105 4350 4950 5250 5590
Open Dimensions mm (WxDxH) 1200x2800x1780 1200x2800x1780 1200x2800x1780 1600x3200x2000 1600x3200x2000 Open Dimensions mm (WxDxH) 1600x3200x2000 1600x3200x2000 1750x3504x2000 2100x4000x2200 2100x4000x2200
Open Weight kg 2350 2600 2700 2800 2900 Open Weight kg 3590 3750 4900 4900 4900

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
