P. 11
G e n e r a t o r G e n e r a t o r

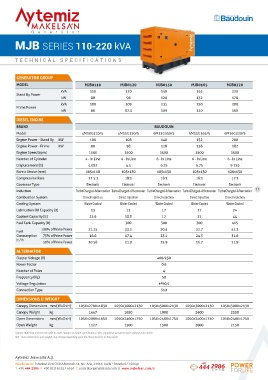

MJB SERIES 55-90 kVA MJB SERIES 110-220 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJB0055 MJB0070 MJB0072 MJB0088 MJB0090 MODEL MJB0110 MJB0120 MJB0150 MJB0165 MJB0220
kVA 55 70 72 88 90 kVA 110 120 150 165 220
Stand By Power Stand By Power
kW 44 56 57.6 70.4 72 kW 88 96 120 132 176
kVA 50 63.6 65.5 80 81.8 kVA 100 109 135 150 200
Prime Power Prime Power
kW 40 50.9 52.3 64 65.5 kW 80 87.3 109 120 160
DIESEL ENGINE DIESEL ENGINE
BRAND BAUDOUIN BRAND BAUDOUIN
Model 4M06G55/5 4M10G70/5 4M11G70/5 4M10G88/5 4M11G90/5 Model 4M10G110/5 4M11G120/5 6M11G150/5 6M11G165/5 6M16G220/5
Engine Power - Stand By kW 53 63 66 77 81 Engine Power - Stand By kW 100 108 140 152 200
Engine Power - Prime kW 48 57 60 69 74 Engine Power - Prime kW 90 98 128 138 182
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line Number of Cylinder 4 - In Line 4 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 2.3 4.087 4.5 4.087 4.5 Displacement (lt) 4.087 4.5 6.75 6.75 9.726
Bore x Stroke (mm) 89x92 105x118 105x130 105x118 105x130 Bore x Stroke (mm) 105x118 105x130 105x130 105x130 126x130
Compression Rate 17.5:1 17.5:1 18:1 17.5:1 18:1 Compression Rate 17.5:1 18:1 18:1 18:1 17:1
Governor Type ECU Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic Electronic Electronic
Induction TurboCharged-Aftercooler TurboCharged TurboCharged TurboCharged TurboCharged Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler 11
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 7.3 11 11 11 11 Lubrication Oil Capacity (lt) 13 11 17 17 24
Coolant Capacity (lt) 12.9 17 17 17 17 Coolant Capacity (lt) 23.6 13.3 17 17 44
Fuel Tank Capacity (lt) 113 187 187 187 187 Fuel Tank Capacity (lt) - 300 300 300 415
Fuel 100% of Prime Power 11.9 14.5 14.5 18.6 18.6 Fuel 100% of Prime Power 21.25 23.3 30.4 32.7 42.1
Consumption 75% of Prime Power 8.9 11 11 13.7 13.7 Consumption 75% of Prime Power 16.0 17.4 23.1 24.5 31.6
lt / h lt / h
50% of Prime Power 6 7.7 7.7 9.4 9.4 50% of Prime Power 10.58 11.9 15.9 16.7 21.9
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1000x2300x1700 1050x2700x1830 1050x2700x1830 1050x2700x1830 1050x2700x1830 Canopy Dimensions mm (WxDxH) 1050x2700x1830 1050x3000x2130 1050x3000x2130 1050x3000x2130 1050x3000x2130
Canopy Weight kg 1010 1100 1100 1130 1325 Canopy Weight kg 1447 1650 1900 2400 2550
Open Dimensions mm (WxDxH) 1000x1750x1450 1050x2090x1650 1050x2090x1650 1050x2090x1650 1050x2090x1650 Open Dimensions mm (WxDxH) 1050x2090x1650 1050x2400x1750 1050x2400x1750 1050x2400x1750 1050x2400x1750
Open Weight kg 765 1050 1050 1100 1100 Open Weight kg 1127 1500 1500 2000 2150
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
