G e n e r a t o r G e n e r a t o r

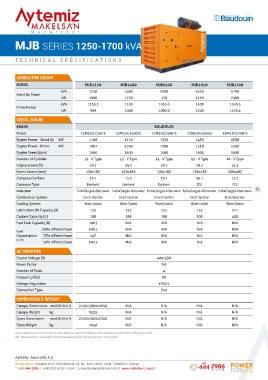

MJB SERIES 750-1100 kVA MJB SERIES 1250-1700 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJB0750 MJB0825 MJB0900 MJB1000 MJB1100 MODEL MJB1250 MJB1400 MJB1500 MJB1650 MJB1700
kVA 750 825 900 1000 1100 kVA 1250 1400 1500 1650 1700
Stand By Power Stand By Power
kW 600 660 720 800 880 kW 1000 1120 120 1320 1360
kVA 681.8 750 818.2 909 1000 kVA 1136.3 1250 1363.6 1500 1545.5
Prime Power Prime Power
kW 545.5 600 654.5 727.2 800 kW 909 1000 1090.9 1200 1236.4
DIESEL ENGINE DIESEL ENGINE
BRAND BAUDOUIN BRAND BAUDOUIN
Model 6M33G750/5 6M33G825/5 12M26G900/5 12M26G1000/5 12M26G1100/5 Model 12M33G1250/5 12M33G1400/5 12M33G1500/5 12M33G1650/5 16M33G1700/5
Engine Power - Stand By kW 670 725 793 902 973 Engine Power - Stand By kW 1108 1210 1320 1450 1530
Engine Power - Prime kW 610 659 725 820 889 Engine Power - Prime kW 1007 1100 1200 1318 1390
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - V Type 12 - V Type 12 - V Type 6 - In Line Number of Cylinder 12 - V Type 12 - V Type 12 - V Type 12 - V Type 16 - V Type
Displacement (lt) 19.60 19.60 31.80 31.80 31.80 Displacement (lt) 39.2 39.2 39.2 39.2 52.3
Bore x Stroke (mm) 150x185 150x185 150x150 150x150 150x150 Bore x Stroke (mm) 150x185 150x185 150x185 150x185 150x185
Compression Rate 15:1 15.0:1 15.7:1 15.7:1 15.7:1 Compression Rate 15:1 15:1 15:1 15:1 15:1
Governor Type Electronic Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic ECU ECU
Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler 15
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 61 61 109 109 109 Lubrication Oil Capacity (lt) 155 155 155 155 171
Coolant Capacity (lt) 159 159 148 148 148 Coolant Capacity (lt) 188 188 188 303 400
Fuel Tank Capacity (lt) 1003 1003 1003 1003 1003 Fuel Tank Capacity (lt) 1003 N/A N/A N/A N/A
Fuel 100% of Prime Power 135.1 150.1 172.5 196.8 205.0 Fuel 100% of Prime Power 198.4 N/A N/A N/A N/A
Consumption 75% of Prime Power 99.3 112.2 130.4 147.2 154.1 Consumption 75% of Prime Power 147 N/A N/A N/A N/A
lt / h lt / h
50% of Prime Power 66.4 72.5 91 101.8 105.7 50% of Prime Power 100.3 N/A N/A N/A N/A
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 2100x4800x2330 2100x4800x2330 2130x5000x2600 2130x4500x2600 2130x5000x2650 Canopy Dimensions mm (WxDxH) 2130x5000x2650 N/A N/A N/A N/A
Canopy Weight kg 7480 7790 7890 8250 9035 Canopy Weight kg 9120 N/A N/A N/A N/A
Open Dimensions mm (WxDxH) 2100x4000x2200 2100x4000x2200 2130x4500x2300 2130x4500x2300 2130x4500x2300 Open Dimensions mm (WxDxH) 2130x5000x2300 N/A N/A N/A N/A
Open Weight kg 6000 6310 6410 6770 7370 Open Weight kg 7450 N/A N/A N/A N/A
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
