G e n e r a t o r G e n e r a t o r

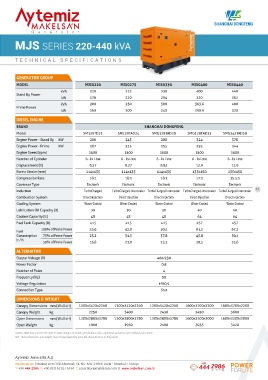

MJB SERIES 1900-2750 kVA MJS SERIES 220-440 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJB1900 MJB2000 MJB2250 MJB2550 MJB2750 MODEL MJS0220 MJS0275 MJS0330 MJS0400 MJS0440
kVA 1900 2000 2250 2550 2750 kVA 220 275 330 400 440
Stand By Power Stand By Power
kW 1520 1600 1800 2040 2200 kW 176 220 264 320 352
kVA 1727.2 1818.2 2045.4 2318.2 2500 kVA 200 250 300 363.6 400
Prime Power Prime Power
kW 1381.2 1454.5 1636.3 1854.5 2000 kW 160 200 240 290.9 320
DIESEL ENGINE DIESEL ENGINE
BRAND BAUDOUIN BRAND SHANGHAI DONGFENG
Model 16M33G1900/5 16M33G2000/5 16M33G2250/5 12M55G2550/5 12M55G2750/5 Model SM129TD21 SM129TAD24 SMG128TAD28 SMG128TAD31 SMG142TAD38
Engine Power - Stand By kW 1650 1800 1980 2210 2450 Engine Power - Stand By kW 206 245 280 324 378
Engine Power - Prime kW 1530 1620 1800 1985 2200 Engine Power - Prime kW 187 223 255 295 344
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 16 - V Type 16 - V Type 16 - V Type 12 - V Type 12 - V Type Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 52.3 52.3 52.3 65.65 65.65 Displacement (lt) 8.27 8.27 8.82 12.9 12.9
Bore x Stroke (mm) 150x185 150x185 150x185 180x215 180x215 Bore x Stroke (mm) 114x135 114x135 114x135 135x150 135x150
Compression Rate 15:1 15:1 14:1 16.5:1 16.5:1 Compression Rate 18:1 18:1 18:1 17:1 15.5:1
Governor Type ECU ECU ECU ECU ECU Governor Type Electronic Electronic Electronic Electronic Electronic
Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler Induction TurboCharged TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler 17
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 171 171 171 560 560 Lubrication Oil Capacity (lt) 30 30 30 40 40
Coolant Capacity (lt) 400 400 412 306 306 Coolant Capacity (lt) 48 48 48 64 64
Fuel Tank Capacity (lt) N/A N/A N/A N/A N/A Fuel Tank Capacity (lt) 415 415 415 457 457
Fuel 100% of Prime Power N/A N/A N/A N/A N/A Fuel 100% of Prime Power 33,6 42,0 50,4 61,1 67,2
Consumption 75% of Prime Power N/A N/A N/A N/A N/A Consumption 75% of Prime Power 25,2 31,5 37,8 45,8 50,4
lt / h lt / h
50% of Prime Power N/A N/A N/A N/A N/A 50% of Prime Power 16,8 21,0 25,2 30,5 33,6
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) N/A N/A N/A N/A N/A Canopy Dimensions mm (WxDxH) 1200x3420x2260 1200x3420x2260 1200x3420x2260 1600x3700x2200 1600x3700x2200
Canopy Weight kg N/A N/A N/A N/A N/A Canopy Weight kg 2250 2400 2430 3450 3600
Open Dimensions mm (WxDxH) N/A N/A N/A N/A N/A Open Dimensions mm (WxDxH) 1200x2800x1780 1200x2800x1780 1200x2800x1780 1600x3200x2000 1600x3200x2000
Open Weight kg N/A N/A N/A N/A N/A Open Weight kg 1900 1950 2100 3035 3120
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
