G e n e r a t o r G e n e r a t o r

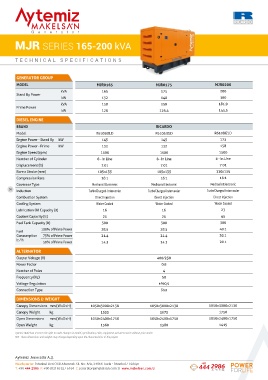

MJR SERIES 165-200 kVA MJV SERIES 110-200 kVA

TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP GENERATOR GROUP
MODEL MJR0165 MJR0175 MJR0200 MODEL MJV0110 MJV0145 MJV0167 MJV0200
kVA 165 175 200 kVA 110 145 167 200
Stand By Power Stand By Power
kW 132 140 160 kW 88 116 133.6 160
kVA 150 159 181.9 kVA 100 131.8 151.8 181.8
Prime Power Prime Power
kW 120 126.4 145.5 kW 80 105.5 121.5 145.5
DIESEL ENGINE DIESEL ENGINE
BRAND RICARDO BRAND VOLVO PENTA
Model R6105IZLD R6105IZLD R6108IZLD Model TAD531GE TAD532GE TAD731GE TAD732GE
Engine Power - Stand By kW 145 145 173 Engine Power - Stand By kW 98 125 148 179
Engine Power - Prime kW 132 132 158 Engine Power - Prime kW 88 112 133 160
Engine Speed (rpm) 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 4 - In Line 4 - In Line 6 - In Line 6 - In Line
Displacement (lt) 7.01 7.01 7.01 Displacement (lt) 4.76 4.76 7.15 7.15
Bore x Stroke (mm) 105x135 105x135 110x135 Bore x Stroke (mm) 108x130 108x130 108x130 108x130
Compression Rate 16:1 16:1 16:1 Compression Rate 18:1 17.5:1 18:1 18:1
Governor Type Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Governor Type Electronic Electronic Electronic Electronic
36
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 16 16 23 Lubrication Oil Capacity (lt) 13 11 20 34
Coolant Capacity (lt) 25 25 45 Coolant Capacity (lt) 19.7 20.2 23.8 41.8
Fuel Tank Capacity (lt) 300 300 300 Fuel Tank Capacity (lt) 180 280 380 380
Fuel 100% of Prime Power 28.5 28.5 40.1 Fuel 100% of Prime Power 22.6 31.5 33.6 40.1
Consumption 75% of Prime Power 21.4 21.4 30.1 Consumption 75% of Prime Power 16.9 23.1 25.2 30
lt / h lt / h
50% of Prime Power 14.3 14.3 20.1 50% of Prime Power 11.6 15.6 17.1 20.6
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1050x3000x2130 1050x3000x2130 1050x3000x2130 Canopy Dimensions mm (WxDxH) 1050x3000x2130 1050x3000x2130 1050x3000x2130 1050x3000x2130
Canopy Weight kg 1655 1675 1750 Canopy Weight kg 1305 1565 1810 1955
Open Dimensions mm (WxDxH) 1050x2400x1750 1050x2400x1750 1050x2400x1750 Open Dimensions mm (WxDxH) 1050x2400x1750 1050x2400x1750 1050x2400x1750 1050x2400x1750
Open Weight kg 1360 1380 1415 Open Weight kg 1100 1315 1560 1705

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
