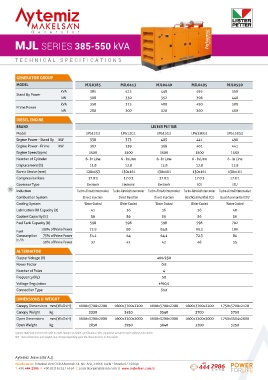

Page 32 - Aytemiz Makelsan Generator | Catalogue

G e n e r a t o r

MJL SERIES 385-550 kVA

TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP
MODEL MJL0385 MJL0413 MJL0440 MJL0495 MJL0550
kVA 385 413 440 495 550
Stand By Power
kW 308 330 352 396 440
kVA 350 375 400 450 500
Prime Power
kW 280 300 320 360 400
DIESEL ENGINE
BRAND LISTER PETTER
Model LP612G3 LP613G1 LP613G2 LP613EG2 LP613EG3
Engine Power - Stand By kW 338 373 405 441 490
Engine Power - Prime kW 307 339 368 401 441
Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 11.8 12.8 12.8 12.8 12.8
Bore x Stroke (mm) 128x153 130x161 130x161 130x161 130x161
Compression Rate 17.0:1 17.0:1 17.0:1 17.0:1 17.0:1
Governor Type Electronic Electronic Electronic ECU ECU
32
Induction Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler
Combustion System Direct Injection Direct Injection Direct Injection BoschCommonRail ECU BoschCommonRail ECU
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 41 36 36 36 40
Coolant Capacity (lt) 56 56 56 56 56
Fuel Tank Capacity (lt) 598 598 598 598 702
Fuel 100% of Prime Power 72.9 88 84.8 99.1 109
Consumption 75% of Prime Power 54.1 64 64.1 72.3 81
lt / h
50% of Prime Power 37 42 42 48 55
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1600x3700x2200 1600x3700x2200 1600x3700x2200 1600x3700x2200 1750x3700x2120
Canopy Weight kg 3350 3450 3540 3700 3750
Open Dimensions mm (WxDxH) 1600x3200x2000 1600x3200x2000 1600x3200x2000 1600x3200x2000 1750x3504x2000
Open Weight kg 2850 2950 3040 3200 3250

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
