G e n e r a t o r G e n e r a t o r

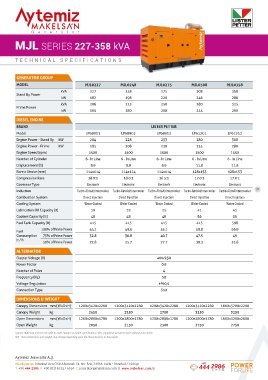

MJL SERIES 125-206 kVA MJL SERIES 227-358 kVA

TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP GENERATOR GROUP
MODEL MJL0125 MJL0138 MJL0150 MJL0165 MJL0206 MODEL MJL0227 MJL0248 MJL0275 MJL0308 MJL0358
kVA 125 138 150 165 206 kVA 227 248 275 308 358
Stand By Power Stand By Power
kW 100 110 120 132 165 kW 182 198 220 246 286
kVA 113 125 138 150 188 kVA 206 225 250 280 325
Prime Power Prime Power
kW 90 100 110 120 150 kW 165 180 200 224 260
DIESEL ENGINE DIESEL ENGINE
BRAND LISTER PETTER BRAND LISTER PETTER
Model LP443G5 LP443G6 LP665G1 LP665G2 LP665G3 Model LP689G1 LP689G2 LP689G3 LP612G1 LP612G2
Engine Power - Stand By kW 116 132 141 155 185 Engine Power - Stand By kW 204 228 253 280 308
Engine Power - Prime kW 105 120 128 140 168 Engine Power - Prime kW 185 208 230 255 280
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 4.3 4.3 6.5 6.5 6.5 Displacement (lt) 8.9 8.9 8.9 11.8 11.8
Bore x Stroke (mm) 105x124 105x124 105x124 105x124 105x124 Bore x Stroke (mm) 114x114 114x114 114x114 128x153 128x153
Compression Rate 16.0:1 16.0:1 16.0:1 16.0:1 16.0:1 Compression Rate 18.0:1 18.0:1 16.5:1 17.0:1 17.0:1
Governor Type Electronic Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic Electronic Electronic
Induction Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Induction Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler 31
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 13 13 17.5 17.5 17.5 Lubrication Oil Capacity (lt) 19 19 25 41 41
Coolant Capacity (lt) 31 31 42 42 42 Coolant Capacity (lt) 48 48 48 56 56
Fuel Tank Capacity (lt) 300 300 300 300 300 Fuel Tank Capacity (lt) 415 415 415 415 598
Fuel 100% of Prime Power 25 28.3 30.5 33.1 39.7 Fuel 100% of Prime Power 44.1 49.6 55.1 58.8 66.9
Consumption 75% of Prime Power 16.7 21.3 23 25.2 29.5 Consumption 75% of Prime Power 32.8 36.8 40.7 47.5 49
lt / h lt / h
50% of Prime Power 12.8 14.4 16.2 17.6 20.5 50% of Prime Power 22.8 25.7 27.7 30.3 33.8
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1050x3000x2130 1050x3000x2130 1050x3000x2130 1050x3000x2130 1050x3000x2130 Canopy Dimensions mm (WxDxH) 1200x3420x2260 1200x3420x2260 1200x3420x2260 1200x3420x2260 1600x3700x2200
Canopy Weight kg 1650 1900 1980 2050 2400 Canopy Weight kg 2450 2550 2700 3150 3250
Open Dimensions mm (WxDxH) 1050x2400x1750 1050x2400x1750 1050x2400x1750 1050x2400x1750 1050x2400x1750 Open Dimensions mm (WxDxH) 1200x2800x1780 1200x2800x1780 1200x2800x1780 1200x2800x1780 1600x3200x2000
Open Weight kg 1550 1650 1730 1800 2150 Open Weight kg 2050 2150 2300 2750 2750

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
