P. 29
G e n e r a t o r G e n e r a t o r

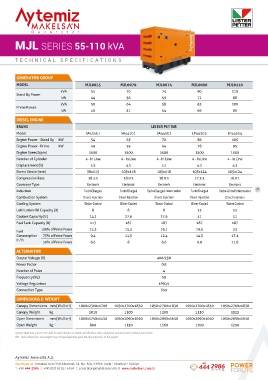

MJL SERIES 18-44 kVA MJL SERIES 55-110 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJL0018 MJL0025 MJL0030 MJL0035 MJL0044 MODEL MJL0055 MJL0070 MJL0074 MJL0090 MJL0110
kVA 18 25 30 35 44 kVA 55 70 74 90 110
Stand By Power Stand By Power
kW 14 20 24 28 35 kW 44 56 59 72 88
kVA 16 23 27 32 40 kVA 50 64 68 83 100
Prime Power Prime Power
kW 13 18 21.6 25 32 kW 40 51 54 66 80
DIESEL ENGINE DIESEL ENGINE
BRAND LISTER PETTER BRAND LISTER PETTER
Model SA423G1 SA427G1 SA430G1 SA432G1 SA432G2 Model SA435G1 SA441G1 SA441G2 LP443G3 LP443G4
Engine Power - Stand By kW 18 24 30 35 44 Engine Power - Stand By kW 54 65 70 86 105
Engine Power - Prime kW 16 22 27 32 39 Engine Power - Prime kW 49 59 64 78 95
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line
Displacement (lt) 2.3 2.7 3.0 3.2 3.2 Displacement (lt) 3.5 4.1 4.1 4.3 4.3
Bore x Stroke (mm) 85x100 90x105 95x105 98x105 98x105 Bore x Stroke (mm) 98x115 105x118 105x118 105x124 105x124
Compression Rate 18.0:1 18.5:1 18.5:1 18.5:1 18.5:1 Compression Rate 18.5:1 18.0:1 18.0:1 17.3:1 16.0:1
Governor Type Electronic Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic Electronic Electronic
Induction Natural Natural Natural Natural TurboCharged Induction TurboCharged TurboCharged TurboCharged-Intercooler TurboCharged Turbo-AirtoAirIntercooler 29
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 6 8 8 8 8 Lubrication Oil Capacity (lt) 8 8 8 13 13
Coolant Capacity (lt) 9.1 9.8 11.4 11.4 13.2 Coolant Capacity (lt) 14.2 27.6 27.6 31 31
Fuel Tank Capacity (lt) 79 79 79 113 113 Fuel Tank Capacity (lt) 113 187 187 187 187
Fuel 100% of Prime Power 4.9 5.8 7.3 8.5 9.7 Fuel 100% of Prime Power 12.3 15.3 16.1 19.5 23
Consumption 75% of Prime Power 3.85 4.25 5.5 6.15 7.3 Consumption 75% of Prime Power 9.4 11.5 12.4 14.3 17.1
lt / h lt / h
50% of Prime Power 2.75 3 3.9 4.35 5.2 50% of Prime Power 6.6 8 6.6 9.9 11.8
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 900x2000x1410 900x2000x1410 900x2000x1410 1000x2300x1700 1000x2300x1700 Canopy Dimensions mm (WxDxH) 1000x2300x1700 1050x2700x1830 1050x2700x1830 1050x2700x1830 1050x2700x1830
Canopy Weight kg 750 850 900 900 900 Canopy Weight kg 1010 1100 1100 1130 1325
Open Dimensions mm (WxDxH) 900x1500x1100 900x1500x1100 900x1500x1100 1000x1750x1450 1000x1750x1450 Open Dimensions mm (WxDxH) 1000x1750x1450 1050x2090x1650 1050x2090x1650 1050x2090x1650 1050x2090x1650
Open Weight kg 600 700 755 765 785 Open Weight kg 800 1150 1160 1200 1250
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
