G e n e r a t o r G e n e r a t o r

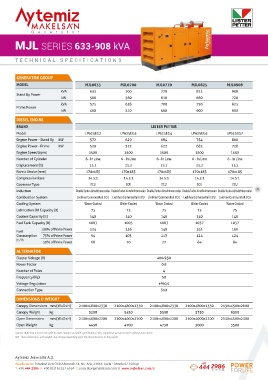

MJL SERIES 385-550 kVA MJL SERIES 633-908 kVA

TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP GENERATOR GROUP
MODEL MJL0385 MJL0413 MJL0440 MJL0495 MJL0550 MODEL MJL0633 MJL0700 MJL0770 MJL0825 MJL0908
kVA 385 413 440 495 550 kVA 633 700 770 825 908
Stand By Power Stand By Power
kW 308 330 352 396 440 kW 506 560 616 660 726
kVA 350 375 400 450 500 kVA 575 638 700 750 825
Prime Power Prime Power
kW 280 300 320 360 400 kW 460 510 560 600 660
DIESEL ENGINE DIESEL ENGINE
BRAND LISTER PETTER BRAND LISTER PETTER
Model LP612G3 LP613G1 LP613G2 LP613EG2 LP613EG3 Model LP625EG2 LP625EG3 LP625EG4 LP625EG5 LP625EG7
Engine Power - Stand By kW 338 373 405 441 490 Engine Power - Stand By kW 572 629 684 754 800
Engine Power - Prime kW 307 339 368 401 441 Engine Power - Prime kW 520 572 622 685 728
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 11.8 12.8 12.8 12.8 12.8 Displacement (lt) 25.2 25.2 25.2 25.2 25.2
Bore x Stroke (mm) 128x153 130x161 130x161 130x161 130x161 Bore x Stroke (mm) 170x185 170x185 170x185 170x185 170x185
Compression Rate 17.0:1 17.0:1 17.0:1 17.0:1 17.0:1 Compression Rate 14.5:1 14.5:1 14.5:1 14.5:1 14.5:1
Governor Type Electronic Electronic Electronic ECU ECU Governor Type ECU ECU ECU ECU ECU
Induction Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Induction DoubleTurbo-AirtoAirIntercooler DoubleTurbo-AirtoAirIntercooler DoubleTurbo-AirtoAirIntercooler DoubleTurbo-AirtoAirIntercooler DoubleTurbo-AirtoAirIntercooler 33
Combustion System Direct Injection Direct Injection Direct Injection BoschCommonRail ECU BoschCommonRail ECU Combustion System LiebherrCommonRail ECU LiebherrCommonRail ECU LiebherrCommonRail ECU LiebherrCommonRail ECU LiebherrCommonRail ECU
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 41 36 36 36 40 Lubrication Oil Capacity (lt) 75 75 75 75 75
Coolant Capacity (lt) 56 56 56 56 56 Coolant Capacity (lt) 140 140 140 140 140
Fuel Tank Capacity (lt) 598 598 598 598 702 Fuel Tank Capacity (lt) 1003 1003 1003 1037 1037
Fuel 100% of Prime Power 72.9 88 84.8 99.1 109 Fuel 100% of Prime Power 124 136 148 163 169
Consumption 75% of Prime Power 54.1 64 64.1 72.3 81 Consumption 75% of Prime Power 94 103 113 124 124
lt / h lt / h
50% of Prime Power 37 42 42 48 55 50% of Prime Power 68 70 77 84 84
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1600x3700x2200 1600x3700x2200 1600x3700x2200 1600x3700x2200 1750x3700x2120 Canopy Dimensions mm (WxDxH) 2100x4800x2330 2100x4800x2330 2100x4800x2330 2100x4800x2330 2130x4500x2600
Canopy Weight kg 3350 3450 3540 3700 3750 Canopy Weight kg 5200 5450 5500 5750 6300
Open Dimensions mm (WxDxH) 1600x3200x2000 1600x3200x2000 1600x3200x2000 1600x3200x2000 1750x3504x2000 Open Dimensions mm (WxDxH) 2100x4000x2200 2100x4000x2200 2100x4000x2200 2100x4000x2200 2130x4500x2300
Open Weight kg 2850 2950 3040 3200 3250 Open Weight kg 4450 4700 4750 5000 5500

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
