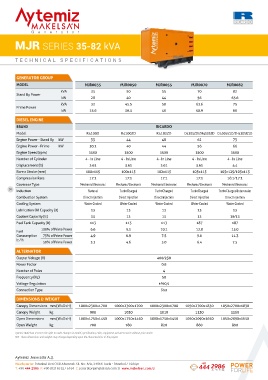

Page 34 - Aytemiz Makelsan Generator | Catalogue

G e n e r a t o r

MJR SERIES 35-82 kVA

TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP
MODEL MJR0035 MJR0050 MJR0055 MJR0070 MJR0082
kVA 35 50 55 70 82
Stand By Power
kW 28 40 44 56 65.6
kVA 32 45.5 50 63.6 75
Prime Power
kW 25.6 36.3 40 50.9 60
DIESEL ENGINE
BRAND RICARDO
Model K4100D K4100ZD K4102ZD D4105ZD/ZH4105ZD D4105IZLD/ZH4105IZLD
Engine Power - Stand By kW 33 44 48 62 73
Engine Power - Prime kW 30.1 40 44 56 66
Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line
Displacement (lt) 3.61 3.61 3.61 3.61 4.4
Bore x Stroke (mm) 100x115 100x115 102x115 105x115 105x125/105x115
Compression Rate 17:1 17:1 17:1 17:1 16:1/17:1
Governor Type Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic Mechanic/Electronic
34
Induction Natural TurboCharged TurboCharged TurboCharged TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 13 13 13 13 13
Coolant Capacity (lt) 13 13 13 13 16/13
Fuel Tank Capacity (lt) 113 113 113 187 187
Fuel 100% of Prime Power 6.6 9.1 10.1 12.8 15.0
Consumption 75% of Prime Power 4.9 6.9 7.5 9.6 11.3
lt / h
50% of Prime Power 3.3 4.6 5.0 6.4 7.5
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1000x2300x1700 1000x2300x1700 1000x2300x1700 1050x2700x1830 1050x2700x1830
Canopy Weight kg 900 1030 1010 1130 1160
Open Dimensions mm (WxDxH) 1000x1750x1450 1000x1750x1450 1000x1750x1450 1050x2090x1650 1050x2090x1650
Open Weight kg 700 780 820 860 890

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
