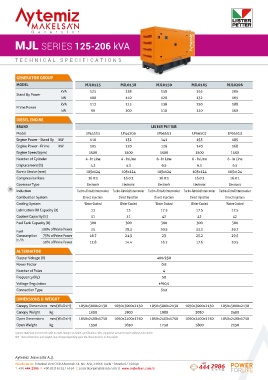

Page 30 - Aytemiz Makelsan Generator | Catalogue

G e n e r a t o r

MJL SERIES 125-206 kVA

TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP
MODEL MJL0125 MJL0138 MJL0150 MJL0165 MJL0206
kVA 125 138 150 165 206
Stand By Power
kW 100 110 120 132 165
kVA 113 125 138 150 188
Prime Power
kW 90 100 110 120 150
DIESEL ENGINE
BRAND LISTER PETTER
Model LP443G5 LP443G6 LP665G1 LP665G2 LP665G3
Engine Power - Stand By kW 116 132 141 155 185
Engine Power - Prime kW 105 120 128 140 168
Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 4.3 4.3 6.5 6.5 6.5
Bore x Stroke (mm) 105x124 105x124 105x124 105x124 105x124
Compression Rate 16.0:1 16.0:1 16.0:1 16.0:1 16.0:1
Governor Type Electronic Electronic Electronic Electronic Electronic
30
Induction Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler Turbo-AirtoAirIntercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 13 13 17.5 17.5 17.5
Coolant Capacity (lt) 31 31 42 42 42
Fuel Tank Capacity (lt) 300 300 300 300 300
Fuel 100% of Prime Power 25 28.3 30.5 33.1 39.7
Consumption 75% of Prime Power 16.7 21.3 23 25.2 29.5
lt / h
50% of Prime Power 12.8 14.4 16.2 17.6 20.5
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1050x3000x2130 1050x3000x2130 1050x3000x2130 1050x3000x2130 1050x3000x2130
Canopy Weight kg 1650 1900 1980 2050 2400
Open Dimensions mm (WxDxH) 1050x2400x1750 1050x2400x1750 1050x2400x1750 1050x2400x1750 1050x2400x1750
Open Weight kg 1550 1650 1730 1800 2150

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
